Description
The Classic Series Display Fountain delivers stunning, streaming water displays designed to elevate the visual appeal of your pond, lake, or landscape. Whether you’re managing a golf course, resort entrance, HOA community, or a large private estate, this fountain instantly transforms still water into a vibrant focal point.
Every Classic Series fountain includes a single, precision-engineered nozzle that can be configured into three unique display patterns, offering flexibility and variety without purchasing additional parts. With flowing vertical plumes, multi-tiered arcs, and elegant fan effects, you can easily match your fountain to the mood or setting.
Installation is as simple as it gets. For fountains up to 2HP, this model is plug & play—pre-assembled and ready to go with a 230v plug. No wiring. No complicated setup. Just unbox, float, and power on. **For the 3HP option, this model is designed to be hardwired into a control box — *If optional control panel is not selected, customer must install motor power cable into GFCI 2-pole 30amp breaker in customer supplied panel*
Crafted with commercial-grade materials like poly-styrene-filled HDPE floats and stainless steel, water-cooled motors, the Classic Series is built for long-term performance. It’s a dependable, low-maintenance solution for those who want display without the downtime.
Key Features:
- Three Distinct Display Patterns

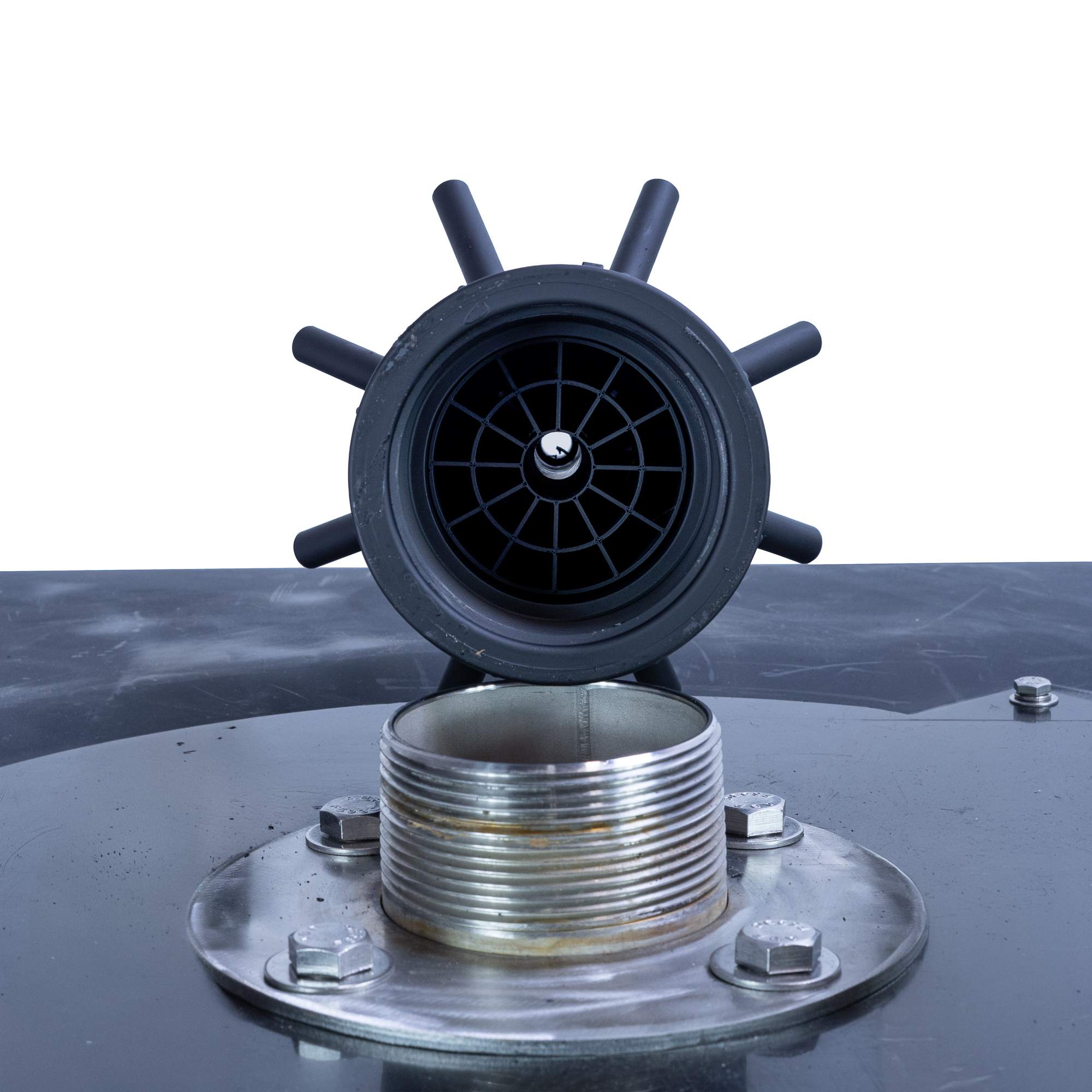

- Each unit includes a single brass nozzle with 3 stunning nozzle configurations—fan, vertical plume, and multi-tiered arc—giving you visual variety without extra parts or purchases.
- Plug & Play Setup
- Fountains up to 2HP come pre-assembled and ready to install. Just set the float, drop in the motor assembly, plug into your 230V GFCI outlet, and power on—no plumbing, tools, or on-site wiring required.
- Low Maintenance by Design
- Built with high-quality HDPE and stainless steel components, this fountain resists corrosion, warping, and wear—meaning fewer cleanings, no part failures, and minimal ongoing maintenance besides periodic cleaning.

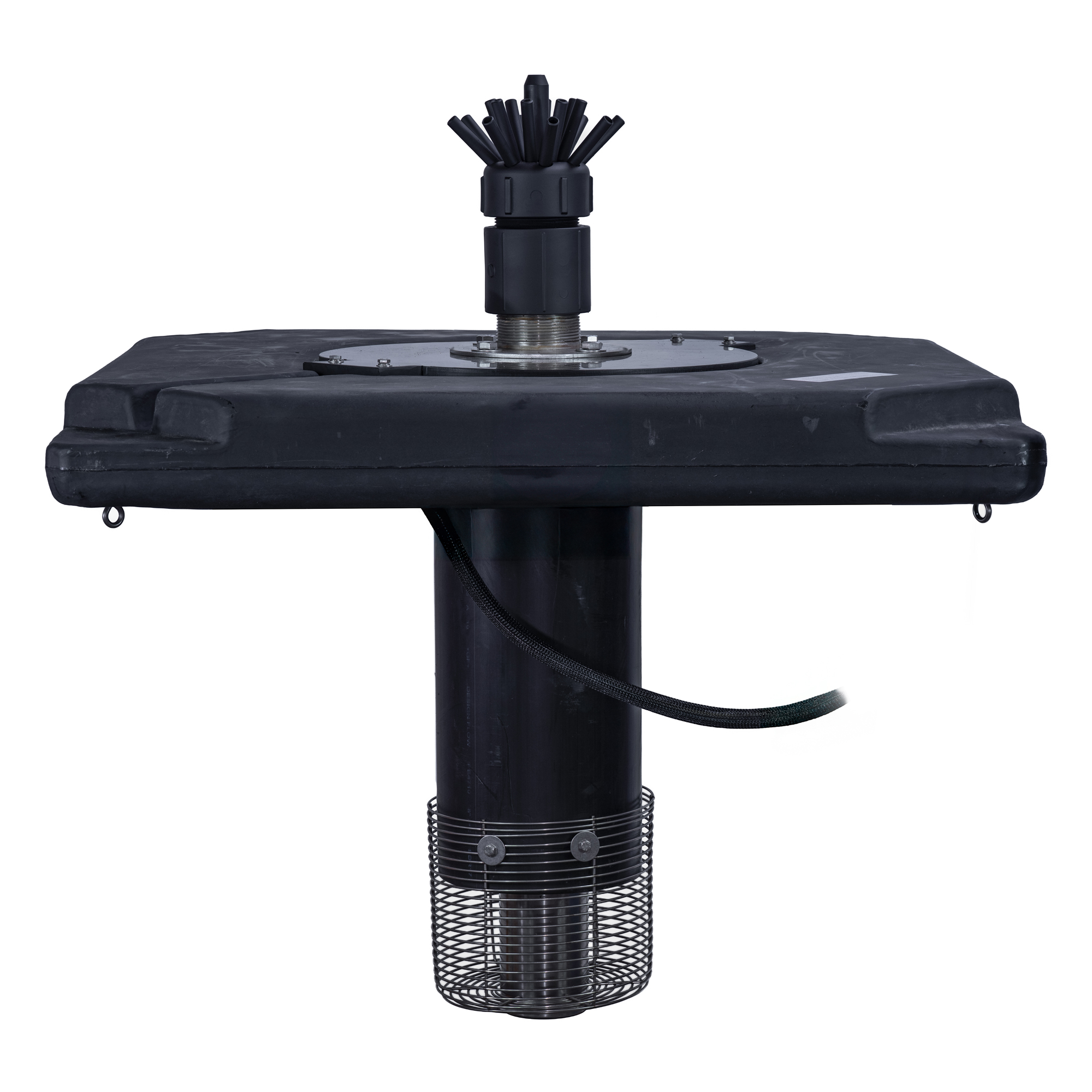

Key Components:

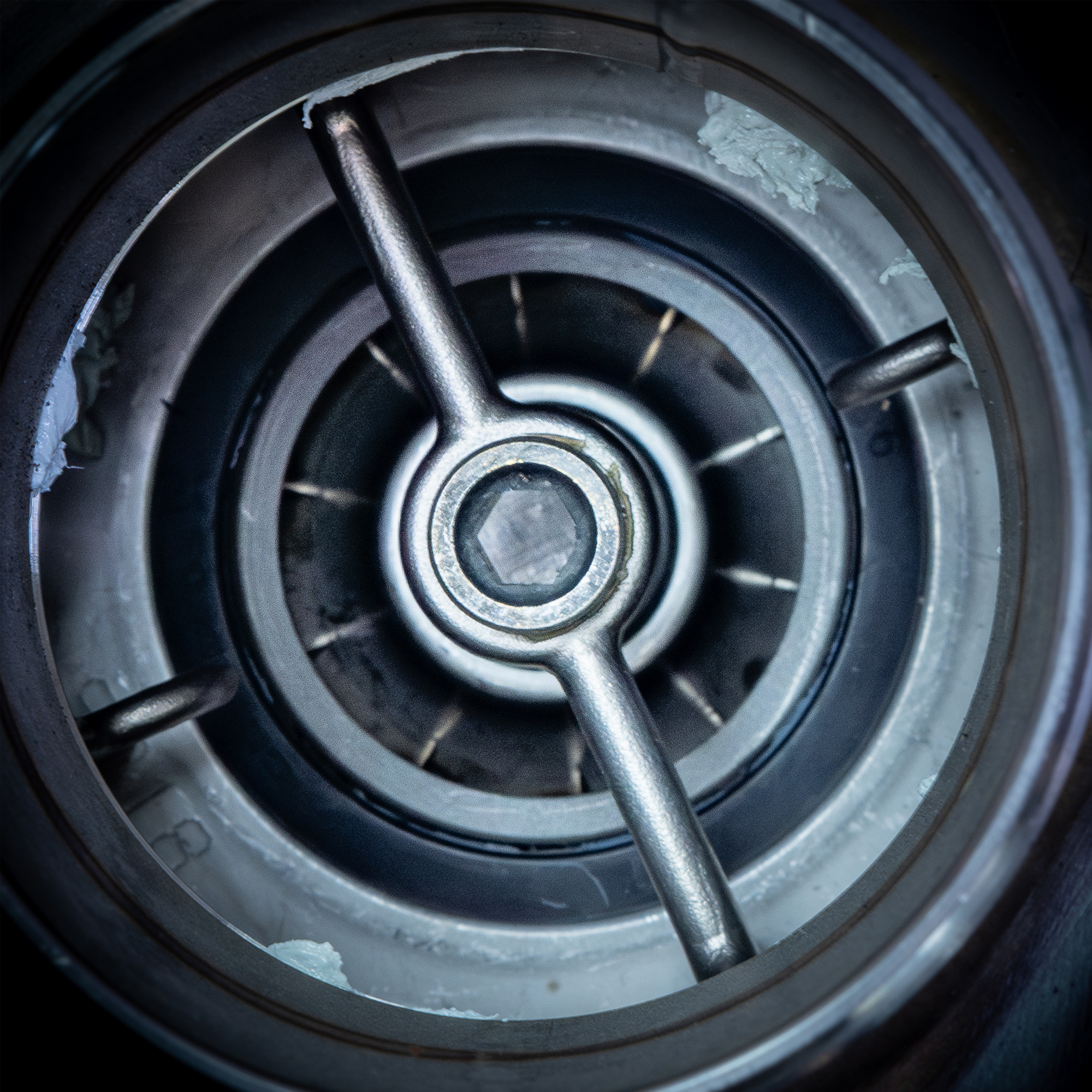

- Motor: Stainless steel submersible motor, water-cooled

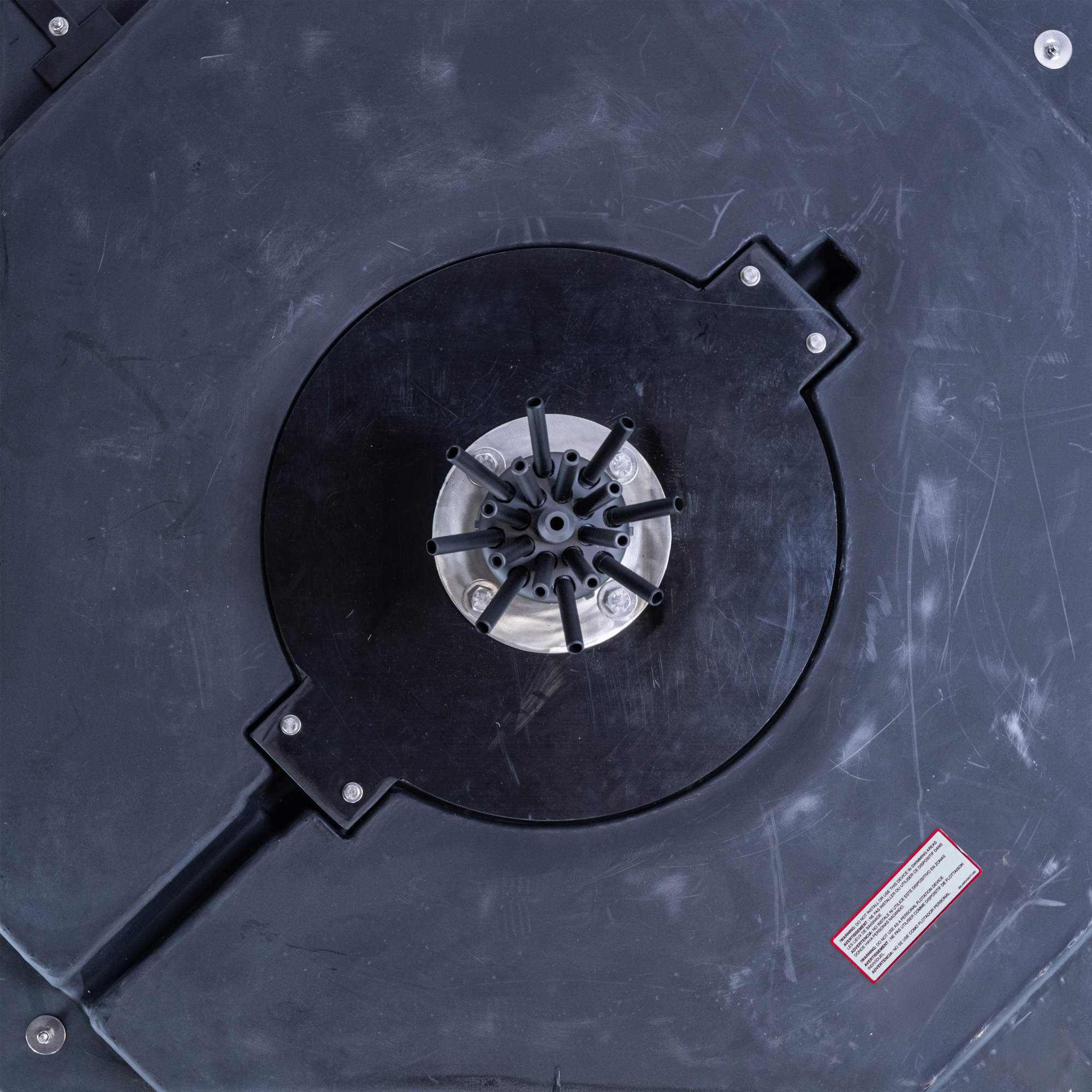

- Float Type: 36” diameter “Never Sink” float, polystyrene-filled
- Spray Nozzles Included: 1 Nozzle with 3 display configurations (see table for dimensions)
- Power Cable: 100’ included; Cable lengths available up to 400ft.

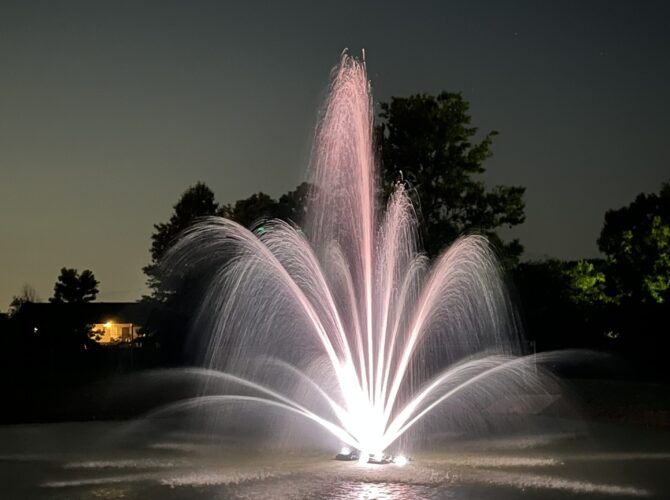

- Lighting (Optional): RGB color-changing LED light kit (Includes stainless steel housing, tempered glass lenses, remote control and digital timer)
- Pond Size Recommendation: See Table Below
- Warranty: 3 years Motor | 2 years Electronic Components | 3 years Float
| 3/4HP | 1HP | 1.5HP | 2HP | 3HP | |
| Voltage | 230v | 230v | 230v | 230v | 230v |
| Amperage (Max) | 8 | 10.4 | 11.5 | 13.2 | 17 |
| Electrical Plug/Wiring Configuration | 230v Plug | 230v Plug | 230v Plug | 230v Plug | Hardwired (Panel Needed) |
| Minimum Operating Depth | 30” | 30” | 32” | 34” | 36” |

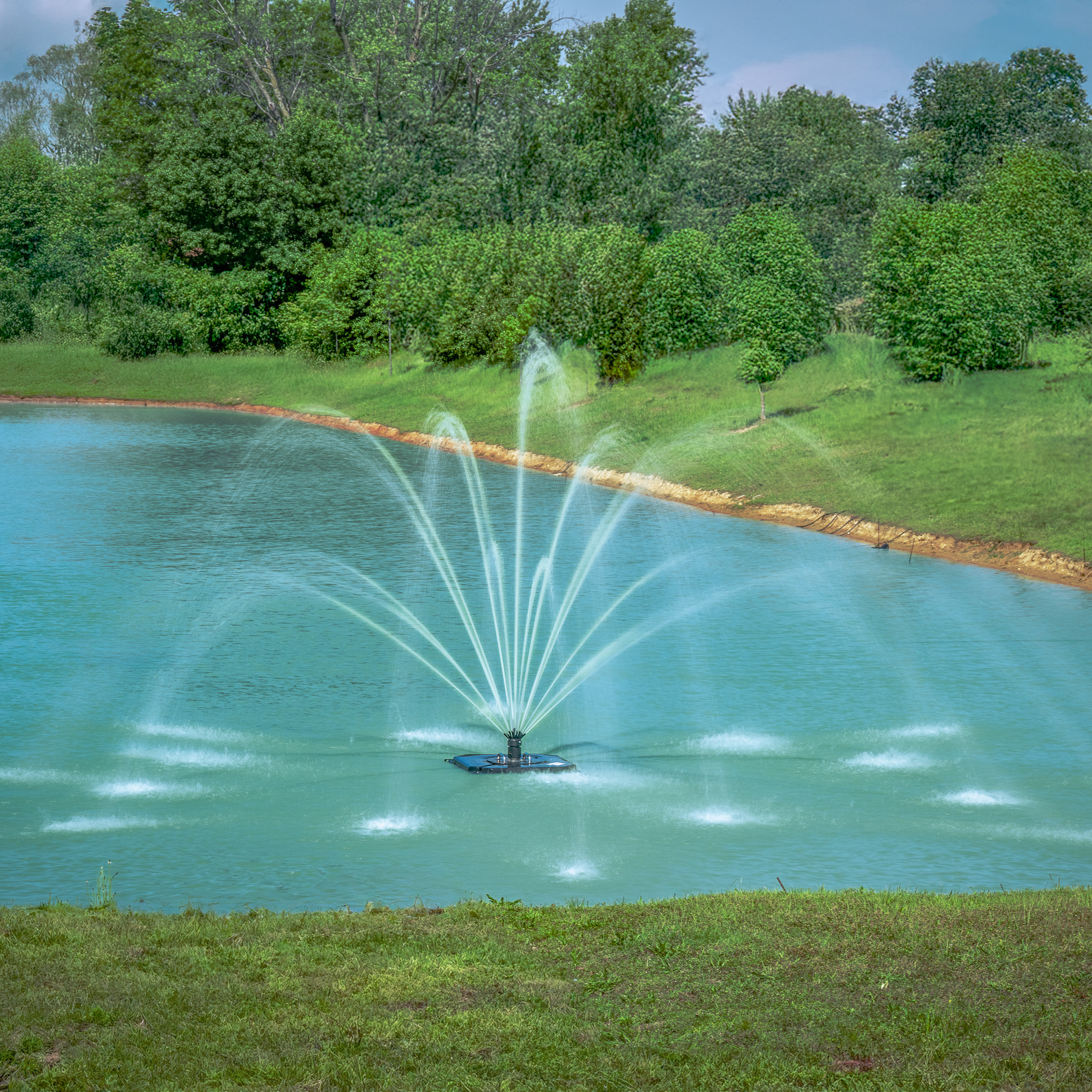

| Orion Nozzle Spray (H/W) | 10’ / 28’ | 12’ / 30’ | 14’ / 40’ | 22’ / 45’ | 24’ / 45’ |

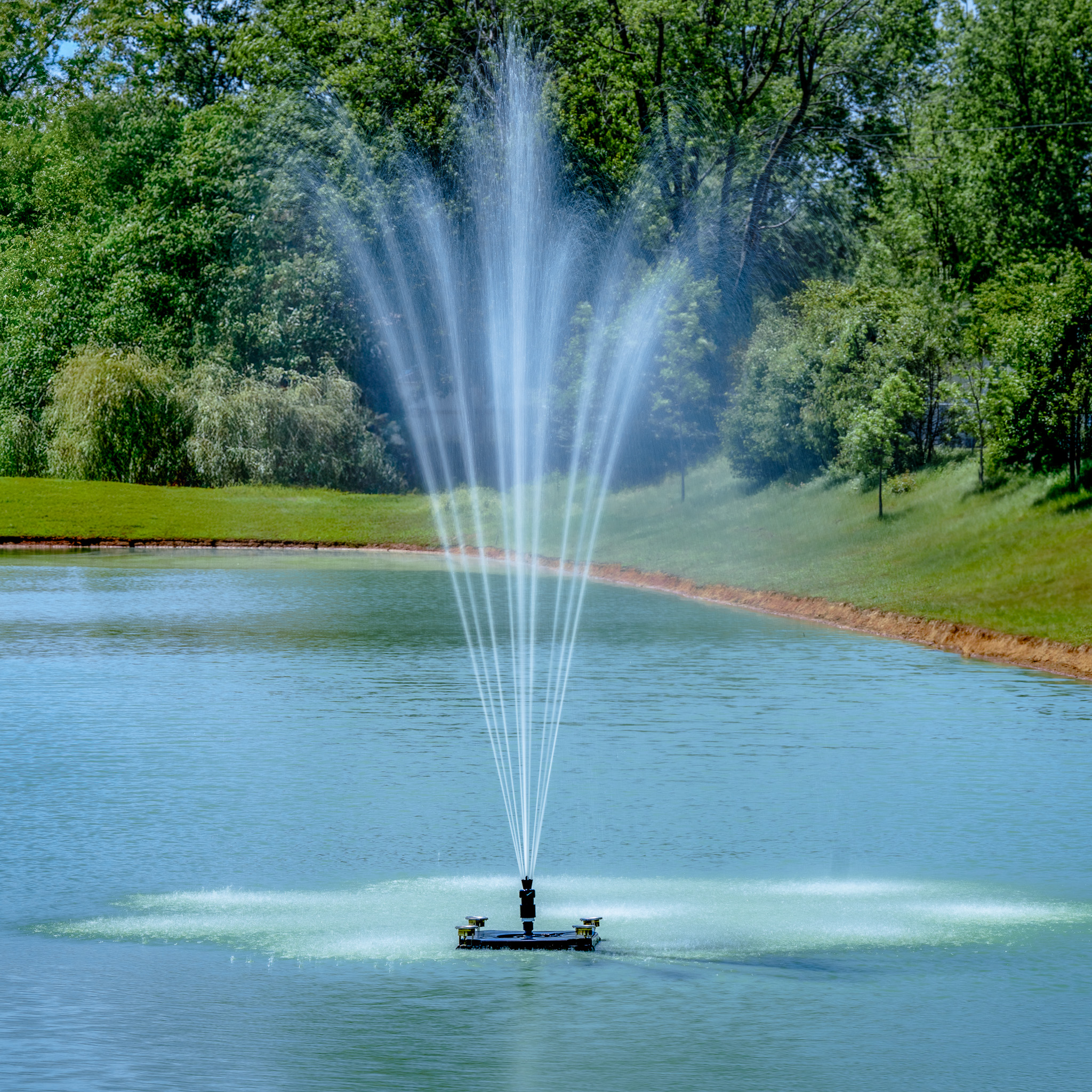

| Sirius Nozzle Dimensions (H/W) | 20’ / 34’ | 22’ / 36’ | 24’ / 50’ | 25’ / 55’ | 31’ / 60’ |

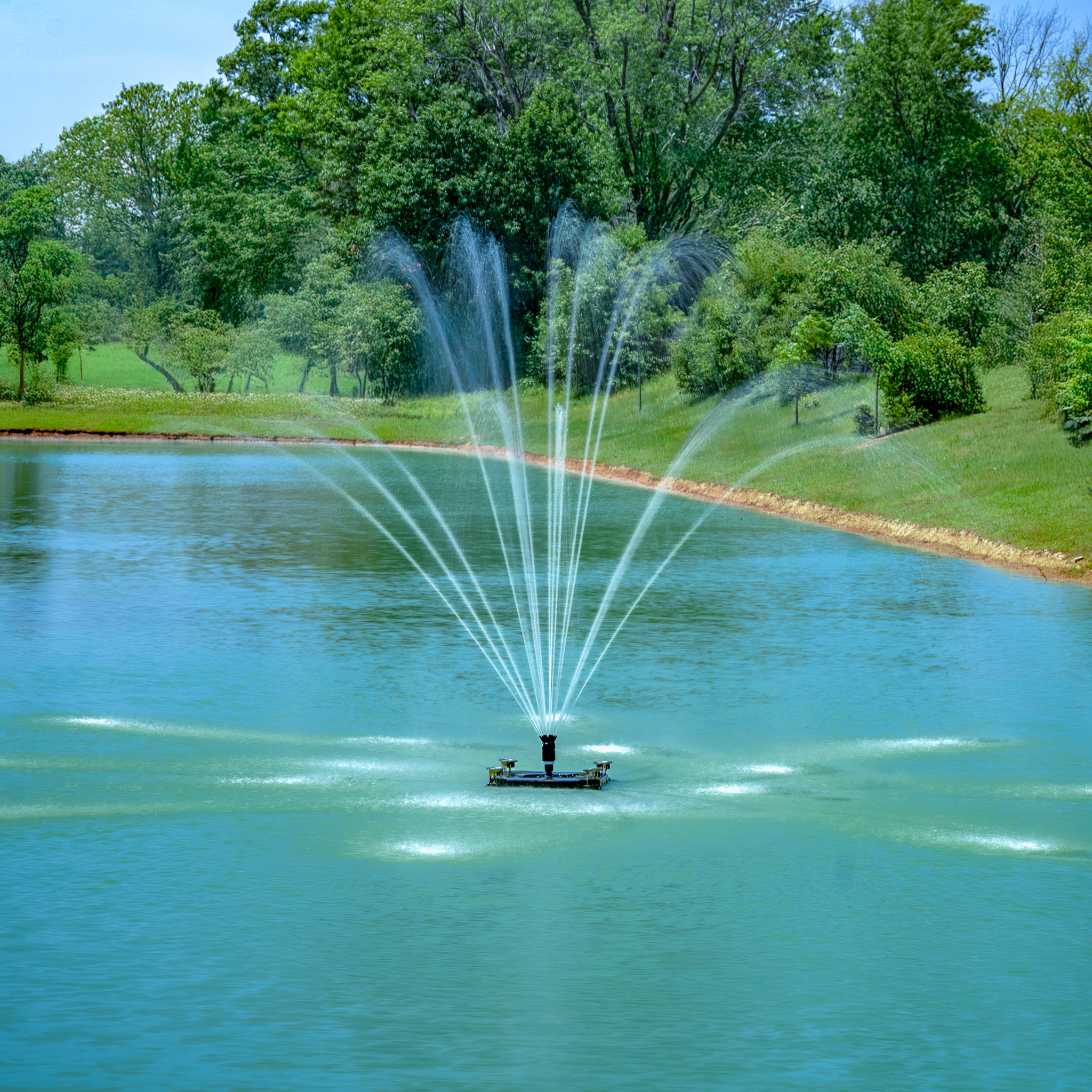

| Nebula Nozzle Dimensions (H/W) | 12’ / 21’ | 13’ / 22’ | 14’ / 30’ | 21’ / 30’ | 24’ / 50’ |
| Recommended Pond Size | ¾ acre | 1 acre | 2 acres | 2 acres | 3 acres |
