Find the Right Bottom Diffused Aeration System for Your Pond
	AerMaster Pro 2	AerMaster Pro 3	AerMaster Pro 5	AerMaster Pro 6	AerMaster Pro 8	AerMaster Pro 9	AerMaster Pro 10
Compressor Size	1/4hp	1/4hp	1/2hp	1/2hp	3/4hp	3/4hp	3/4hp
Max CFM Output	2.6 CFM	2.6 CFM	4.3 CFM	4.3 CFM	5.4 CFM	5.4 CFM	5.4 CFM
Pond Size	Up to 1.5 Acre	Up to 1.5 Acre	Up to 2 Acres	Up to 2.5 Acres	Up to 2.5 Acres	Up to 4 Acres	Up to 4 Acres
Diffuser	1 Double Disc Diffuser	2 Single Disc Diffusers	2 Double Disc Diffusers	3 Single Disc Diffusers	2 Double Disc Diffusers	3 Double Disc Diffusers	2 Quad Disc Diffusers
Airline	100′	200′	200′	300′	300′	500′	500′
Powder Coated Aluminum Cabinet	✔	✔	✔	✔	✔	✔	✔
Made in the USA	✔	✔	✔	✔	✔	✔	✔
	AerMaster Pro 2	AerMaster Pro 3	AerMaster Pro 5	AerMaster Pro 6	AerMaster Pro 8	AerMaster Pro 9	AerMaster Pro 10

Choose the AerMaster Pro you need — engineered for quiet, efficient aeration in deep ponds up to 1.5 acres. These systems combine powerful Quantum™ compressors with durable, rust-resistant cabinets to oxygenate your pond from the bottom up, helping reduce muck, algae, stratification, and fish stress.

• Powder‑coated aluminum cabinet (USA‑manufactured) with lifetime rust warranty
• Energy‑efficient Quantum™ oil‑less piston compressor with low amp draw
• Built‑in circulating fans (220 CFM) for quieter operation and enhanced cooling
• 3‑year factory warranty on system components

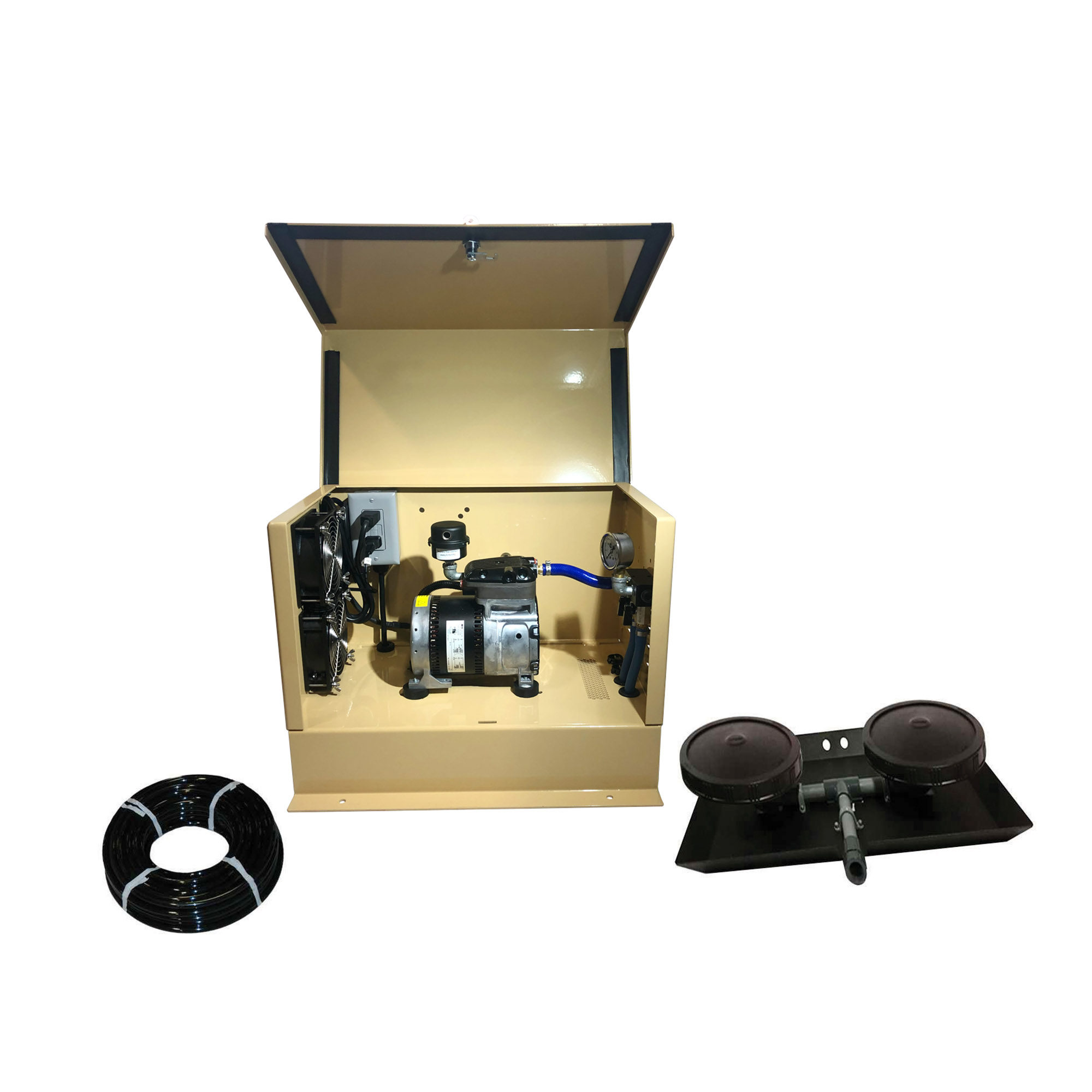

AerMaster Pro 2:

• Recommended Pond Size: Up to 1.5 acres
• Compressor: ¼ hp Quantum™ piston — 2.6 CFM @ up to 10 psi
• Setup Includes: 100 ft of ½″ weighted airline
• One Optimal™ Air dual‑disc low‑PSI diffuser with self‑sinking base
• Pressure relief valve & oil‑filled pressure gauge
• Cabinet: Powder‑coated aluminum, quiet operation, USA-made
• Warranty: 3 years

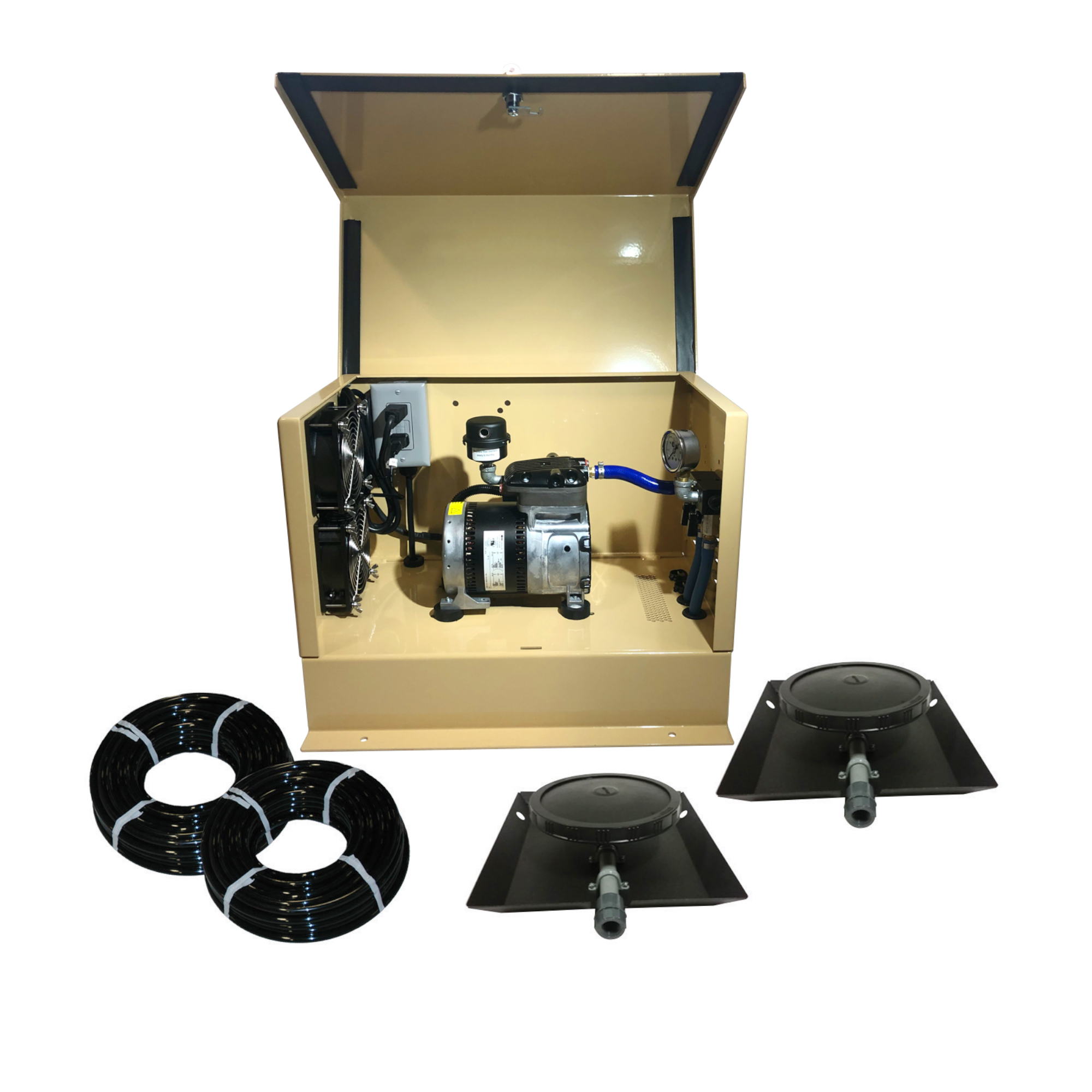

AerMaster Pro 3:

• Recommended Pond Size: Up to 1.5 acres
• Compressor: ¼ hp Quantum™ piston — same 2.62 CFM @ up to 10psi, with 220 CFM cooling fans
• Setup Includes: 200 ft of ½″ weighted airline
• Three‑valve manifold with two adjustable valves
• Two Optimal™ Air single‑disc low‑PSI diffusers with self‑sinking bases
• Pressure relief valve & oil‑filled pressure gauge
• Cabinet: Powder‑coated aluminum, quiet operation, USA-made
• Warranty: 3 years

Optional Sound Kit – Quieter Operation, Longer Lifespan

For pond owners who value ultra-quiet performance and maximum protection, our Optional Sound Kit is the perfect upgrade for your AerMaster Pro system. Designed to minimize operational noise and shield your equipment from the elements, this kit is ideal for residential or noise-sensitive environments.

What’s Included:

Precast Composite Equipment Pad
Provides a sturdy, level foundation for your aeration system. It helps dampen vibration, reduces noise resonance, and keeps your cabinet elevated off the ground to prevent water or mud exposure.

Side Fan Box Covers
Precision-fitted aluminum covers enclose the circulating fans, further reducing noise while maintaining airflow. These also offer additional protection from debris, pests, and harsh weather.

Acoustical Sound Foam
Insulation Industrial-grade sound-deadening foam lines the interior of the cabinet to dramatically reduce compressor and fan noise. It also acts as thermal insulation, helping regulate interior cabinet temperatures to protect critical components.

Key Benefits:
Quieter Operation: Greatly reduces noise from compressor vibration and airflow
Extended System Life:  Shields your equipment from moisture, pests, and heat fluctuations
Easy Integration: Pre-installed to fit seamlessly with your AerMaster Pro system
Durable Build: Weather-resistant materials ensure long-term performance in outdoor environments
